PCIe M.2 SSDs

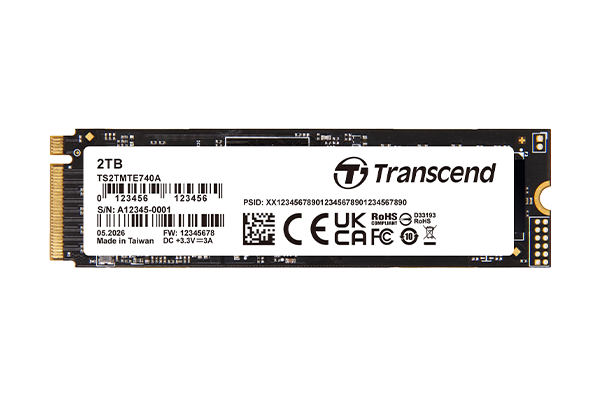

MTE740A & MTE740A-I

Transcend’s M.2 SSD MTE740A is built with the BiCS8 218-layer 3D NAND flash, delivering enhanced storage density and an optimized architecture for outstanding performance and stability. Combined with a high-speed PCIe Gen 5 x4 interface, it fully unleashes the potential of next-generation NAND, ensuring fast and reliable data access.

The MTE740A is engineered for demanding industrial environments, featuring a 30µ" gold finger PCB, Corner Bond technology, and anti-sulfur resistors to reinforce critical components and enhance durability. Rigorously tested, it supports an extended temperature range of -20°C to 75°C, maintaining stable operation even under rapid temperature fluctuations.

Compliant with the TCG Opal 2.0 standard, the MTE740A is a self-encrypting drive (SED) equipped with AES-256 hardware-based encryption and LBA-level management, providing advanced data protection for sensitive information. Transcend also offers the wide-temperature MTE740A-I, designed to operate reliably in extreme conditions from -40°C to 75°C. It is ideal for industrial systems requiring consistent performance, durability, and reliability under heavy workloads.


Technologies

30µ” PCB Gold Finger

Corner Bond

Extended Temperature

Wide Temperature

Dynamic Thermal Throttling

Thermal Sensor

AES Encryption

TCG Opal

Read Disturbance

Anti-Sulfur Technology

Garbage Collection

Wear Leveling

TRIM

Bad Block Management

Power Shield (PS)

Early Move

Firmware Features

  • Supports NVM command
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Early Move
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • NCQ command for better performance
  • Wear-Leveling
  • Secure Erase
  • Full drive encryption with Advanced Encryption Standard (AES)
  • Compliant with TCG Opal specifications and IEEE 1667 standards
  • ASPM (Active-State Power Management) power management mechanism

Hardware Features

  • Compliant with RoHS 2.0 standards
  • Compliant with NVM Express specification 2.0
  • Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
  • PCIe Gen 5 x4 interface
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Key components fortified by default with Corner Bond technology
  • 30µ" PCB gold finger
  • Anti-sulfur technology implemented to prevent sulfurization in the environment
  • Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
*Supports Microsoft® eDrive standard

Specifications

Appearance
Dimensions80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight9 g (0.32 oz)
M.2 Type
  • 2280-D2-M (Double-sided)
Form Factor
  • M.2 2280

Interface
Bus Interface
  • NVMe PCIe Gen5 x4

Storage
Capacity
  • 1 TB
  • 2 TB
Flash Type
  • 218-layer 3D NAND flash

Operating Environment
Operating Voltage
  • 3.3V±5%
Operating Temperature
  • Standard Temp.
    °C (°F) ~ °C (°F)
  • Extended Temp.
    -20°C (-4°F) ~ 75°C (167°F)
  • Wide Temp.
    -40°C (-40°F) ~ 75°C (167°F)
Storage Temperature-55°C (-67°F) ~ 85°C (185°F)
Humidity5% ~ 95%
Shock
  • 15 G, 11 ms, 3 axis
Vibration (Operating)20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)

Power
Power Consumption (Operation)6.6 watt(s)
Power Consumption (IDLE)1.45 watt(s)

Performance
Sequential Read/Write (CrystalDiskMark)Read: Up to 14,000 MB/s
Write: Up to 12,500 MB/s
4K Random Read/Write (IOmeter)Read: Up to 2,100,000 IOPS
Write: Up to 1,500,000 IOPS
Mean Time Between Failures (MTBF)3,000,000 hour(s)
Terabytes Written (TBW)Up to 2,200 TBW
Drive Writes Per Day (DWPD)1 (3 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.

Warranty
Certificate
  • CE
  • UKCA
  • FCC
  • BSMI
Warranty
  • Three-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.
  • Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
  • Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
  • Scope Pro software is required by request. Please contact us for more information.

Order Information

1TB
  • TS1TMTE740A
  • TS1TMTE740A-I
2TB
  • TS2TMTE740A
  • TS2TMTE740A-I
